transceiver module QSFP-DD 400GE SR8 100 m OM4 & 70 m OM3

Name: transceiver module QSFPDD 400GE SR8 100 m OM4 amp 70 m OM3
Brand: CY COM
Price: 1 USD

Buy cheap transceiver module QSFP-DD 400GE SR8 100 m OM4 & 70 m OM3 product

Brand Name : CY COM

Model Number : QSFP-DD 400G SR8

Certification : ISO9001:2015, ISO14001:2015, ROSH

Place of Origin : Shenzhen,China

MOQ : 10PCS

Payment Terms : T/T, Western Union

Supply Ability : 50k/Month

Delivery Time : 5-8 days

Packaging Details : Plastic box and Carton box

Form Factor : QSFP–DD

Transceiver : SR8

Interface : MPO

Media : MMF

Reach/km : 0.1km

Power Consumption/W : 10

Temperature/℃ : 0 to 70

Contact Now

transceiver module QSFP-DD 400GE SR8 100 m OM4 & 70 m OM3

Function Descriptions
OM3680SX200 is a parallel 400GE Quad Small Form Factor Pluggable Double Density (QSFP-DD) SR8
optical module designed for optical communication applications. The optical module uses a 4-level pulse
amplitude modulation (PAM4) format. The optical module provides point-to-point 400 Gigabit Ethernet
links over eight pairs of multimode fiber, with a reach of up to 100 m for OM4 (MMF) and 70 m for OM3
(MMF).
It is compliant with QSFP-DD MSA standard and IEEE 802.3cm 400GBASE-SR8 standard and IEEE
802.3bs 400GAUI-8 standard. Digital diagnostics functions are available via the I2C interface, as
specified by the QSFP-DD MSA.

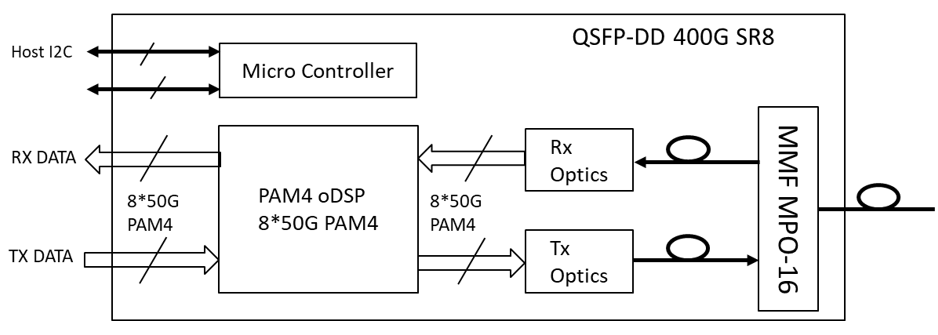

Figure 1-1 Transceiver block diagram

Pin Descriptions
The QSFP-DD SR8 module edge connector consists of a single paddle card with 38 pads on the top and
38 pads on the bottom for a total of 76 pads. The pads are defined in such a manner to accommodate
insertion of a QSFP module into a QSFP-DD receptacle.
Figure 2-1 MSA-compliant connector

Mechanical Specifications
Figure 3-1 OM3680SX200 mechanical dimensions

Product Features
● QSFP-DD MSA compliant
● QSFP-DD CMIS4.0 management interface compliant
● IEEE 802.3cm 400GBASE-SR8 standard compliant
● IEEE 802.3bs 400GAUI-8 standard compliant
● Digital diagnostic functions
● 8-channel full-duplex transceiver module
● 425 Gbps aggregate bit rate
● Maximum link length of 70 m OM3, 100 m OM4 with FEC
● Single MPO-16/APC receptacle
● Maximum power dissipation < 10 W
● Operating case temperature range 0 to 70°C
● Single 3.3 V power supply
● RoHS 2 compliant

Applications
● 400G Ethernet
● Data center network
